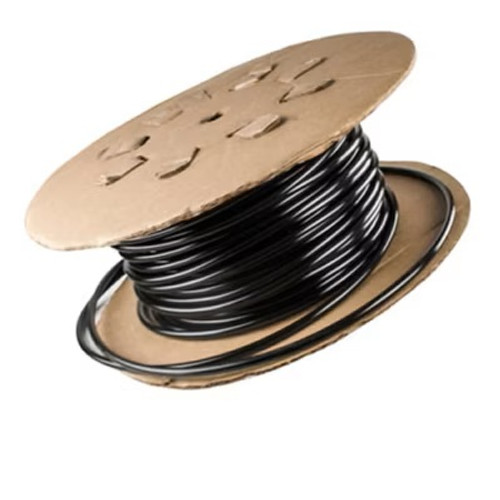

0.170" ID x 1/4" OD x 0.040" Wall Bev-a-line XX® Tubing
- SKU:
- 21200050-500
Bev-A-Line XX® has a patented Hytrel® liner that is virtually inseparable from its shell and it has a sturdy, but flexible, outer shell with a smooth inner lining that offers resistance to abrasion, chemical attack and next-batch contamination. The tubing is gas permeable and withstands repeated autoclaving without separation of layers. The co-extruded construction offers savings in installation over conventional braided profiles. The Hytrel® liner is comparable to poly-ether based urethanes in regards to moisture permeability. With its low permeability, Bev-A-Line XX® also works with refrigerant gases and hydrocarbons.
Autoclavable
Durometer hardness (Shore D): 55 (liner); 80 (outer shell)
Temperature range: -60°F to 160°F
Brittleness temperature: -51°F (liner); -41°F (outer shell)
Specific gravity: 1.20 (liner & outer shell)
Elongation at break: 450% (liner); 400% (outer shell)
Tensile strength: 5200 psi (liner); 2000 psi (outer shell)
Working pressure @ 70°F: 130 psi
Meets FDA & NSF standards
500' standard length
Item Information
Item Number: 56285
Catalog Page Number: P-194
Manufacturer: Excelon
Manufacturer Part #: 21200050
Country of Origin: USA
Tech Specs
Color: Black
OD: 1/4"/0.250"
ID: 0.170"
Wall: 0.040"
Weight: 0.019 lbs
PDF:Tubing Chem Charts
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Description
Bev-A-Line XX® has a patented Hytrel® liner that is virtually inseparable from its shell and it has a sturdy, but flexible, outer shell with a smooth inner lining that offers resistance to abrasion, chemical attack and next-batch contamination. The tubing is gas permeable and withstands repeated autoclaving without separation of layers. The co-extruded construction offers savings in installation over conventional braided profiles. The Hytrel® liner is comparable to poly-ether based urethanes in regards to moisture permeability. With its low permeability, Bev-A-Line XX® also works with refrigerant gases and hydrocarbons. AutoclavableDurometer hardness (Shore D): 55 (liner); 80 (outer shell)Temperature range: -60°F to 160°FBrittleness temperature: -51°F (liner); -41°F (outer shell)Specific gravity: 1.20 (liner & outer shell)Elongation at break: 450% (liner); 400% (outer shell)Tensile strength: 5200 psi (liner); 2000 psi (outer shell)Working pressure @ 70°F: 130 psiMeets FDA & NSF standards500' standard length Item InformationItem Number: 56285Catalog Page Number: P-194Manufacturer: ExcelonManufacturer Part #: 21200050Country of Origin: USATech SpecsColor: BlackOD: 1/4"/0.250"ID: 0.170"Wall: 0.040"Weight: 0.019 lbsPDF:Tubing Chem ChartsWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Bev-A-Line XX® has a patented Hytrel® liner that is virtually inseparable from its shell and it has a sturdy, but flexible, outer shell with a smooth inner lining that offers resistance to abrasion, chemical attack and next-batch contamination. The tubing is gas permeable and withstands repeated autoclaving without separation of layers. The co-extruded construction offers savings in installation over conventional braided profiles. The Hytrel® liner is comparable to poly-ether based urethanes in regards to moisture permeability. With its low permeability, Bev-A-Line XX® also works with refrigerant gases and hydrocarbons.
Autoclavable
Durometer hardness (Shore D): 55 (liner); 80 (outer shell)
Temperature range: -60°F to 160°F
Brittleness temperature: -51°F (liner); -41°F (outer shell)
Specific gravity: 1.20 (liner & outer shell)
Elongation at break: 450% (liner); 400% (outer shell)
Tensile strength: 5200 psi (liner); 2000 psi (outer shell)
Working pressure @ 70°F: 130 psi
Meets FDA & NSF standards
500' standard length
Item Information
Item Number: 56285
Catalog Page Number: P-194
Manufacturer: Excelon
Manufacturer Part #: 21200050
Country of Origin: USA
Tech Specs
Color: Black
OD: 1/4"/0.250"
ID: 0.170"
Wall: 0.040"
Weight: 0.019 lbs
PDF:Tubing Chem Charts
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
